SereneDrains Linear Wall Shower Drain - Tile Insert - Brushed Nickel - 35 Inch
SKU SWD-TIF-BN-35
SereneDrains 35" Wall Linear Shower Drain - 304 Stainless Steel

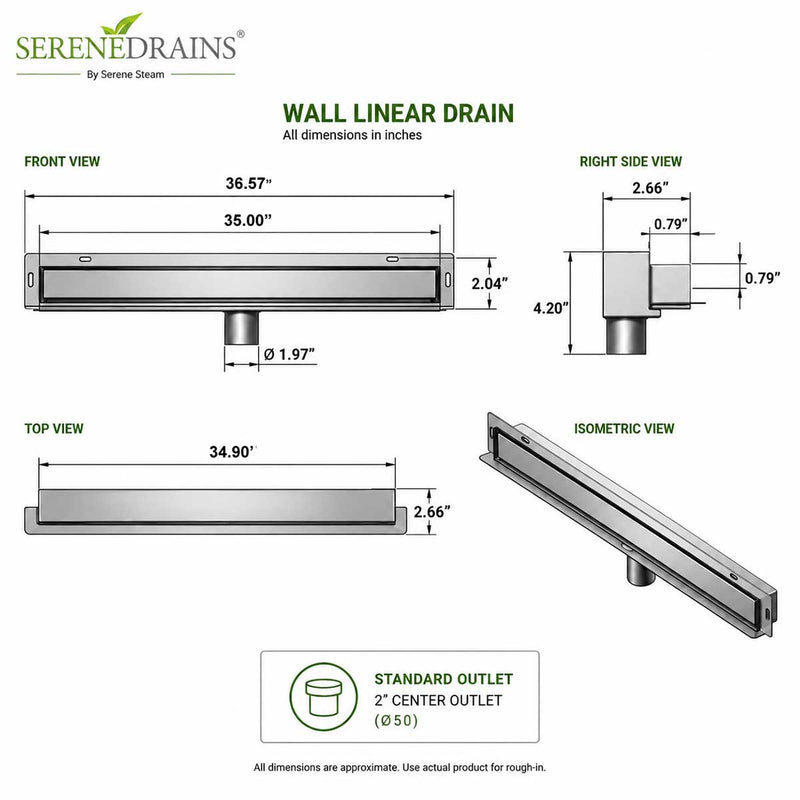

SPECIFICATIONS
- Drain Type: Wall linear shower drain
- Size: 35 inches
- Overall Length: 36.57 inches
- Visible Length: 35.00 inches
- Drain Width: 2.66 inches
- Drain Height: 2.04 inches
- Overall Depth: Approximately 4.20 inches
- Outlet Diameter: 1.97 inches
- Outlet Location: Center
- Installation Type: Wall mount
- Material: 304 stainless steel
- Finish: Brushed stainless steel
- Application: Shower / Bathroom
- Tile Insert: Designed to receive shower floor tile
WHAT'S INCLUDED
- SereneDrains 35" Wall Linear Drain channel
- Removable tile insert
- Flexible PVC coupling
- 2 stainless steel hose clamps
- Stainless steel Hair Trap
- Grate key puller
IDEAL APPLICATIONS
- Residential shower installations
- Commercial shower installations
- Bathroom remodeling projects
- New shower construction
- Modern and contemporary bathroom designs
- Large format tile shower floors
- Wall-mounted linear shower drain installations
INSTALLATION NOTES
The SereneDrains Wall Linear Shower Drain is installed as part of the overall shower assembly. The shower floor should be properly sloped toward the drain, and the drain should be securely supported and connected to the compatible shower waste pipe.
Waterproofing is part of the normal shower waterproofing installation. The tile installer should integrate the drain into the waterproofing system selected for the shower and follow that waterproofing manufacturer's installation instructions.
Always verify all product and job-site measurements before installation. All dimensions shown for this product are nominal.
