SereneDrains Linear Shower Drain - Tile Insert - Matte White - 30 Inch
SKU RLD-TIF-MW-30
Size: Overall Size 31.57" x 4 3/8" - Net Size 30" x 2 3/4"

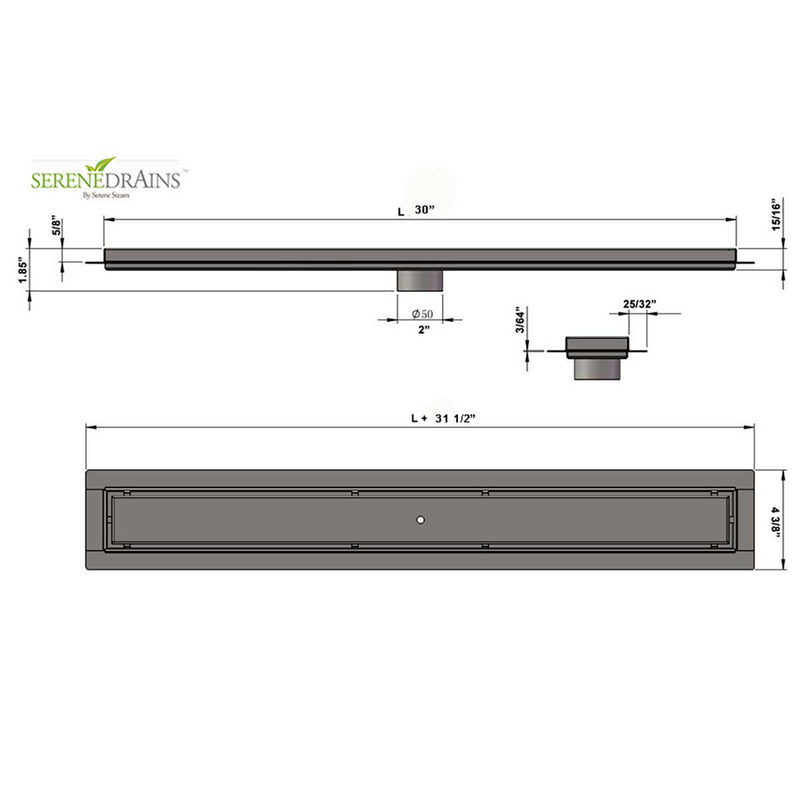

View sketch image for more information
Includes: 1. Drain Body, 1. Drain Grate 1. Rubber Fitting, 1. Drain puller key
Tile Insert Design: you place a piece of your tile on top of the drain grate. Once installed, only the drain frame and the thin water intake gap remain visible.
- 16-gauge 304 grade stainless steel
- 2" diameter Central vertical outlet
- Compatible with tiles up to 10mm depth (14mm lip)
- Bodies are fully welded and leak tested prior to dispatch

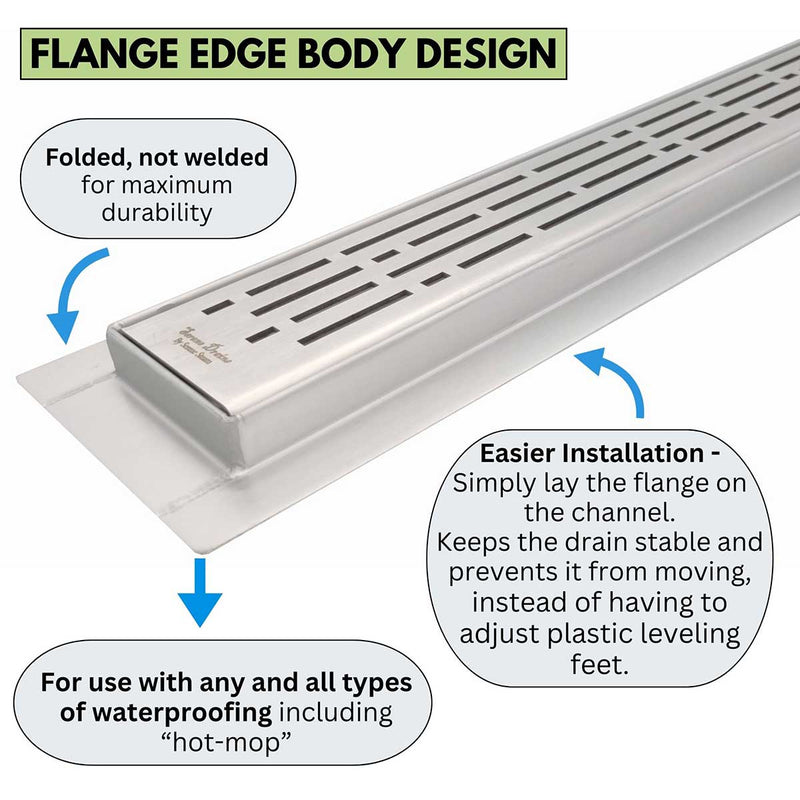

- The flange allows for an easier installation
- Channel width: 2 3/4″ (70 mm)
-
Flow rate: at entrance to shower – 6.3GPM (0.4 l/s)
against the wall – 9.5GPM (0.6 l/s).
Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 27.01 sq. in.
