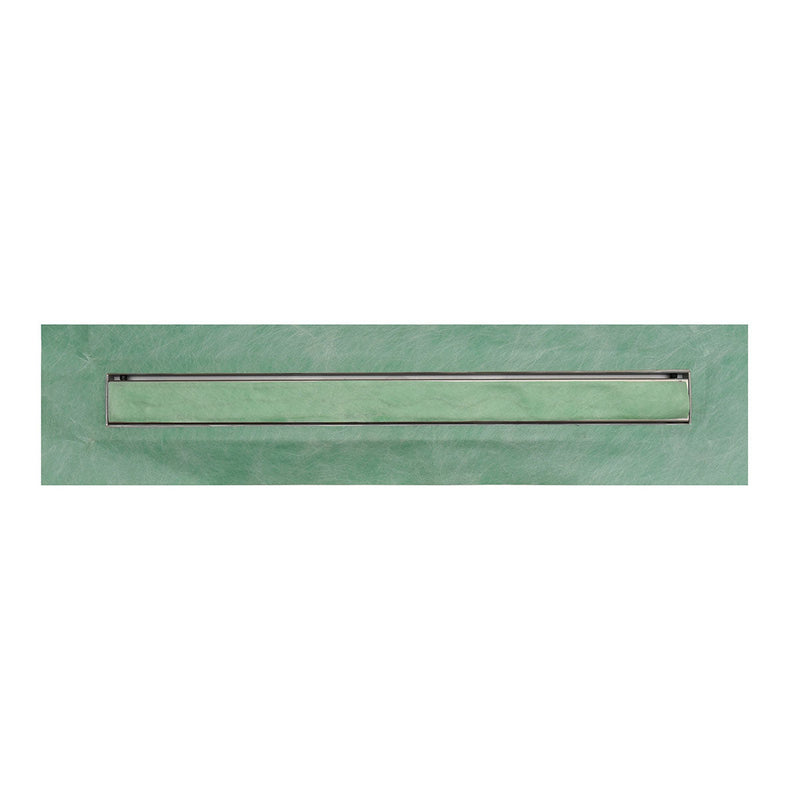

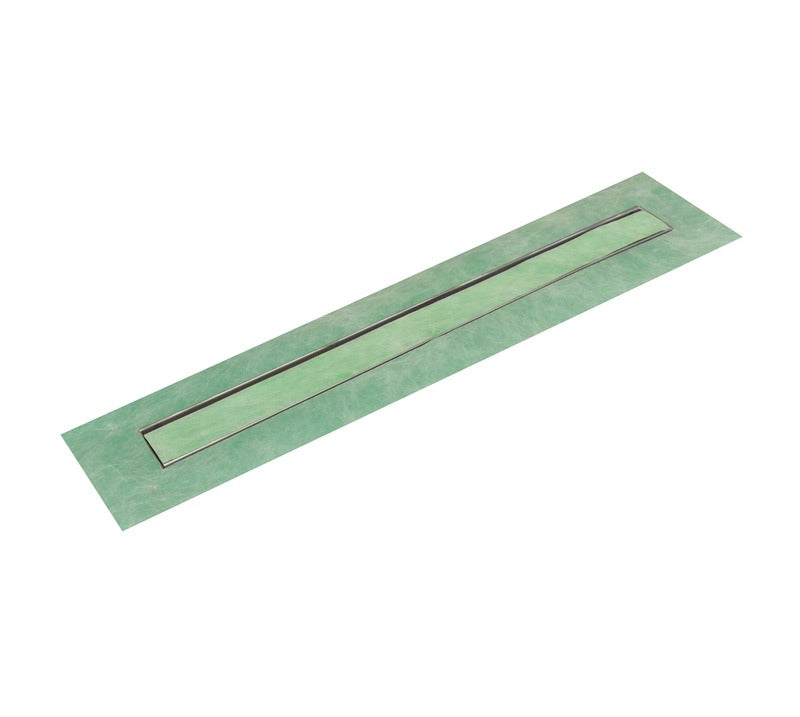

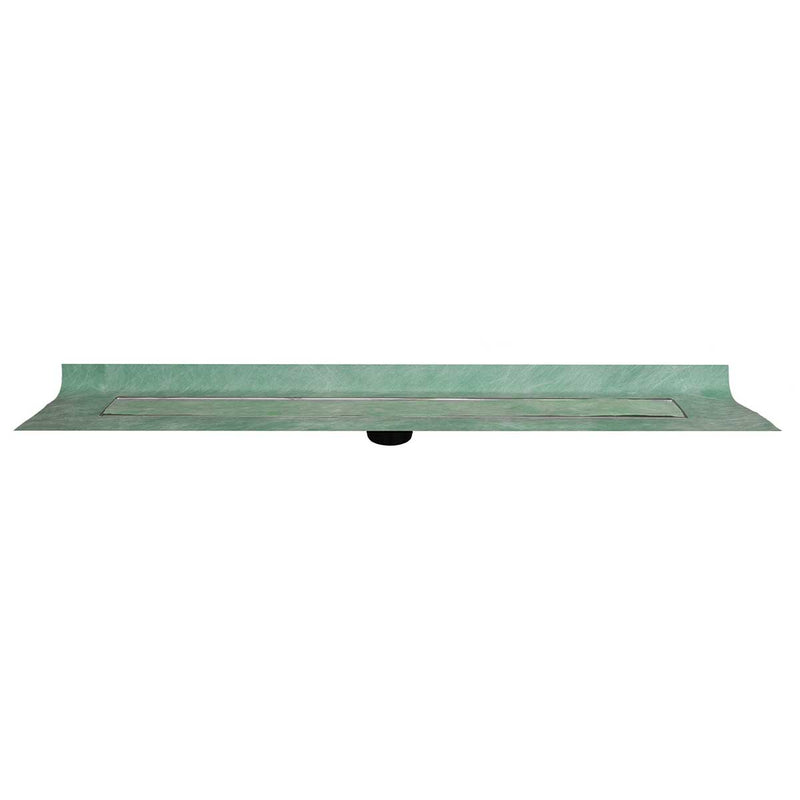

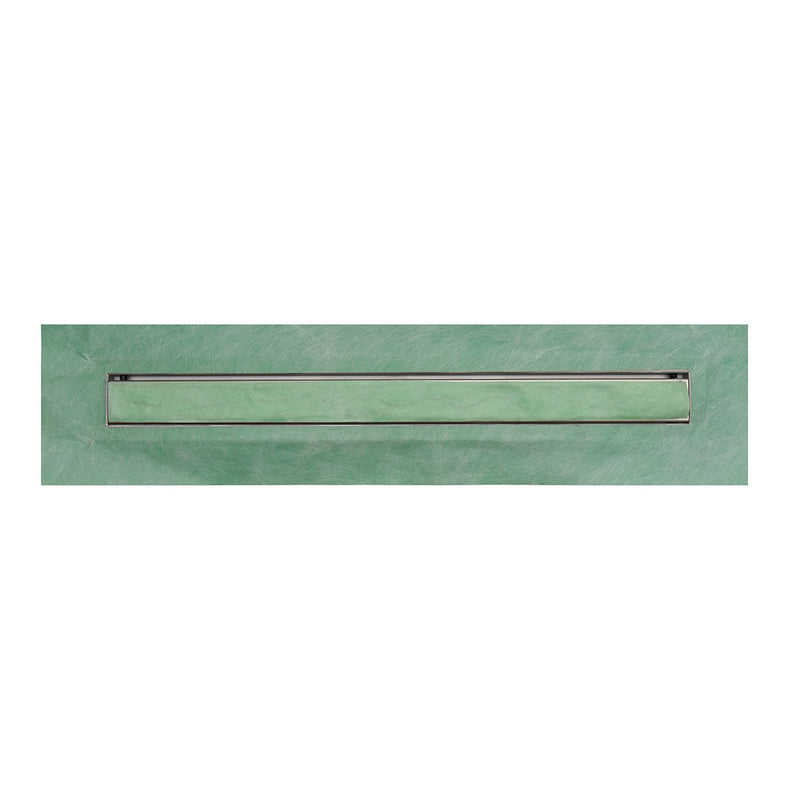

SereneDrains Linear Shower Drain - Invisible - Finishless - 24 Inch

Size: Overall Size 25.2" x 4 3/8" - Net Size 23 1/2" x 2 3/4"

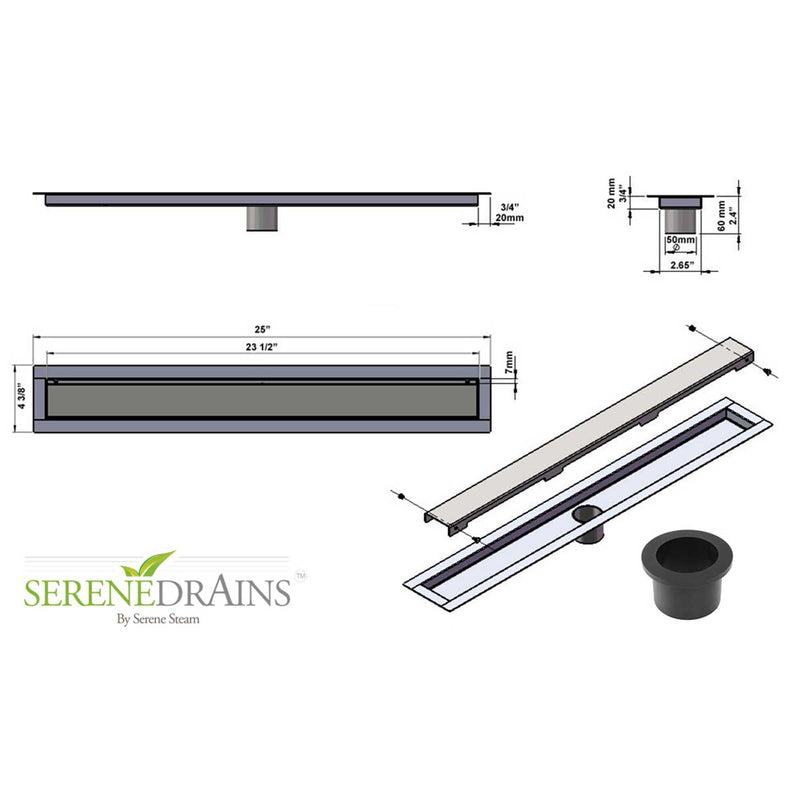

View sketch image for more information

Includes: 1. Drain Body, 1. Drain Grate 1. Rubber Fitting, 1. Drain puller key

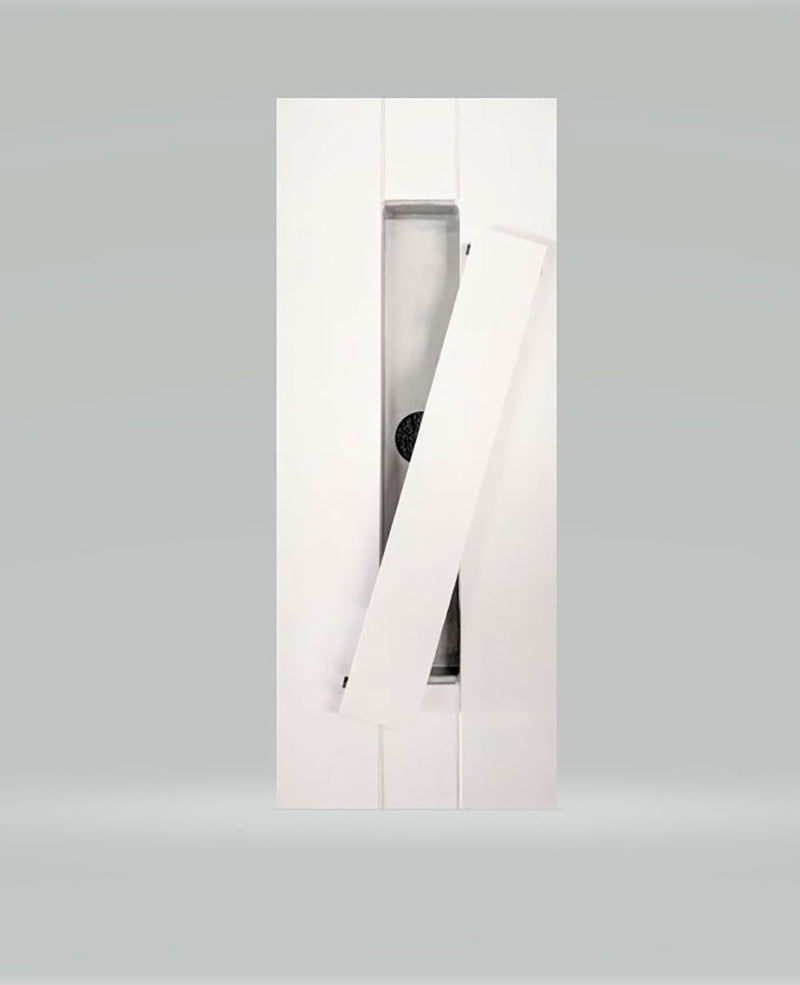

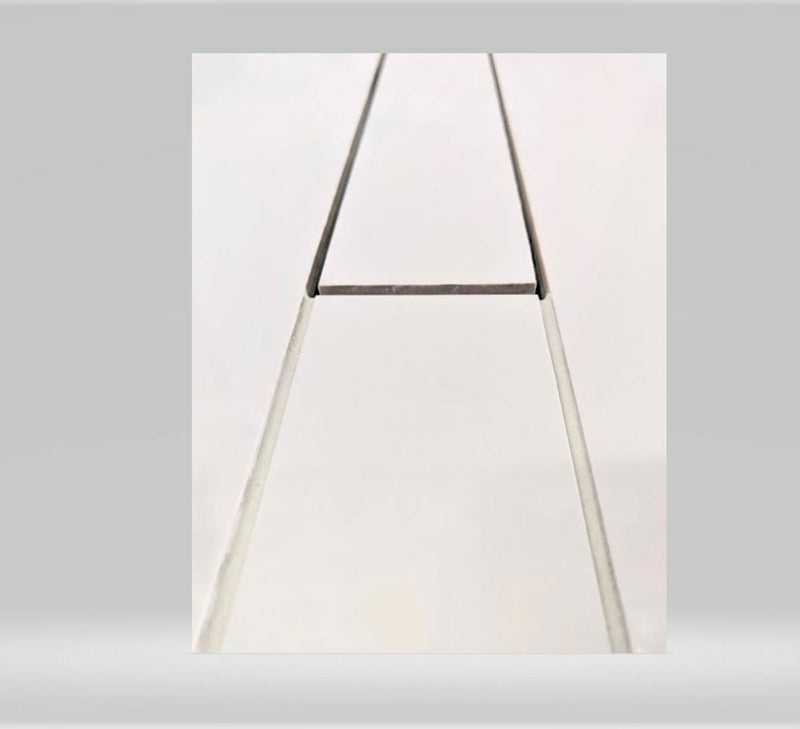

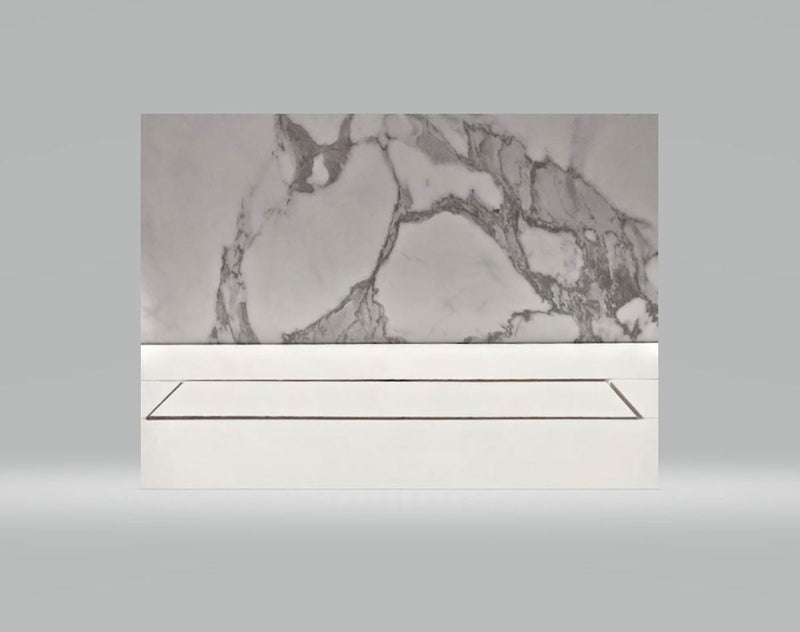

Invisible Design: The difference between the tile insert and invisible designs comes down to what you see after installation. The tile insert shows a slim trim around the tile. The invisible design removes the trim completely, leaving only a clean gap between the tiles where the water drains.

• 16-gauge 304 grade stainless steel
• 2" diameter Central vertical outlet
• Compatible with tiles up to 10mm depth (14mm lip)
• Bodies are fully welded and leak tested prior to dispatch
• The flange allows for an easier installation

• Channel width: 2 3/4″ (70 mm)
• Flow rate: at entrance to shower – 6.3GPM (0.4 l/s)
  against the wall – 9.5GPM (0.6 l/s).

Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.82 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 27.01 sq. in.
